SENSOR WINKO WINWIN
✅ Xuất xứ: |
WinWin (Hàn Quốc)
|
✅ Sản phẩm: |
HÀNG CHÍNH HÃNG |
✅ Freeship: |
TOÀN QUỐC |
✅ Quy cách: |
Bộ |
*Tỷ giá tạm tính: 1usd = 24.000vnđ
New digital radiographic imaging products

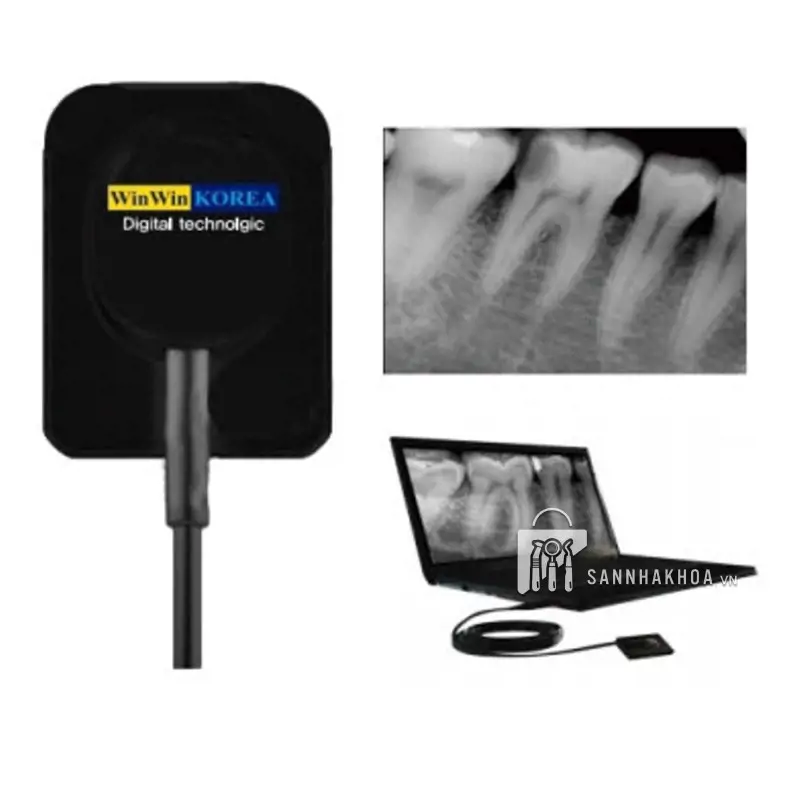

Winko Sensor is the latest addition to the famaily of digital radiographic imaging products.
Rounded corners and smooth edge are the results of a completely new design concept focused on reliability, durability and patient comfort.
Fast & Efficient Workflow
Experience high efficiency from T-sensor with its unmatched simplicity and reliability.
Winko sensor offers you faster image acquisition and real time transmission.

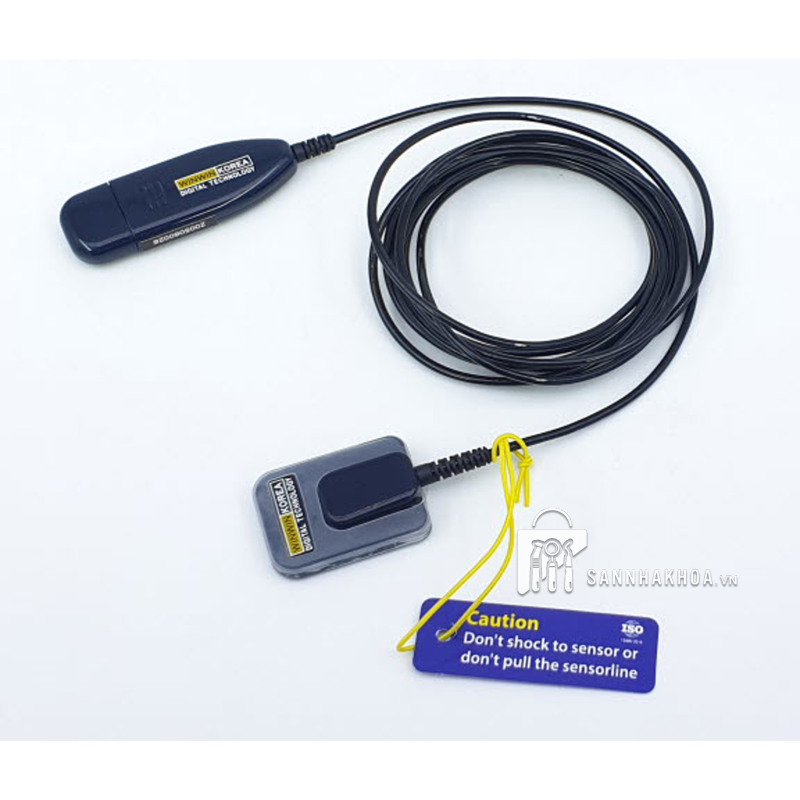

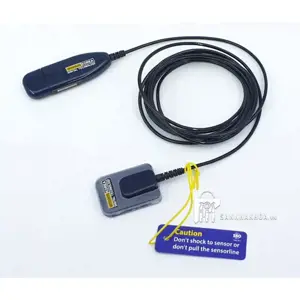

1. Easy to use with a USB connection
2. Ensure product quality
25,000 times Cable Bending test.
3. Ergonomic design
Round cornered body & thin shaped sensor
4. Image in high resolution
Technical Specification
Model Type | USB 1.5 |
Scintillator type | Csl (+FOP) |
Active Area | 22(H) x 32(V) mm |
Active Pixels | 1000 x 1500 px |
Pixel Pitch | 20㎛ |
Frame rate | 0.9 frames/s |
Resolution | 20Lp/mm |
A/D Conversion | 14bits |
Energy Range | 50 ~ 100 kVp |
Dimension | 29 x 40 mm |
